Guided live capture
Large action targets, roster context, keyboard shortcuts and one-key undo. Corrections are rebroadcast, so every downstream consumer sees the fixed event, not a hidden rewrite.
All products02 / COURTSIDE
Capture the game at the speed of play.
Live Stats runs the scorer's bench. A Windows desktop workstation with a full FIBA basketball rules engine, one-key actions, a 14-zone shot chart and undo — and an event stream that syncs safely from any arena network, fanning out live to public pages, widgets and video, and to data partners through a scoped API and HMAC-signed webhooks.
109 msmedian click-to-consumer latency
Offlinefull match without network
FIBArules engine built in
PRODUCT VIEW / ENGLISH UIINTERFACE CONCEPT BASED ON THE WORKING DS2 PRODUCT
FALCONS
76:72WOLVES
12 Carter●●●07 Reed●●●23 Novak●●●03 Ellis●●●15 Moore●●●
32×

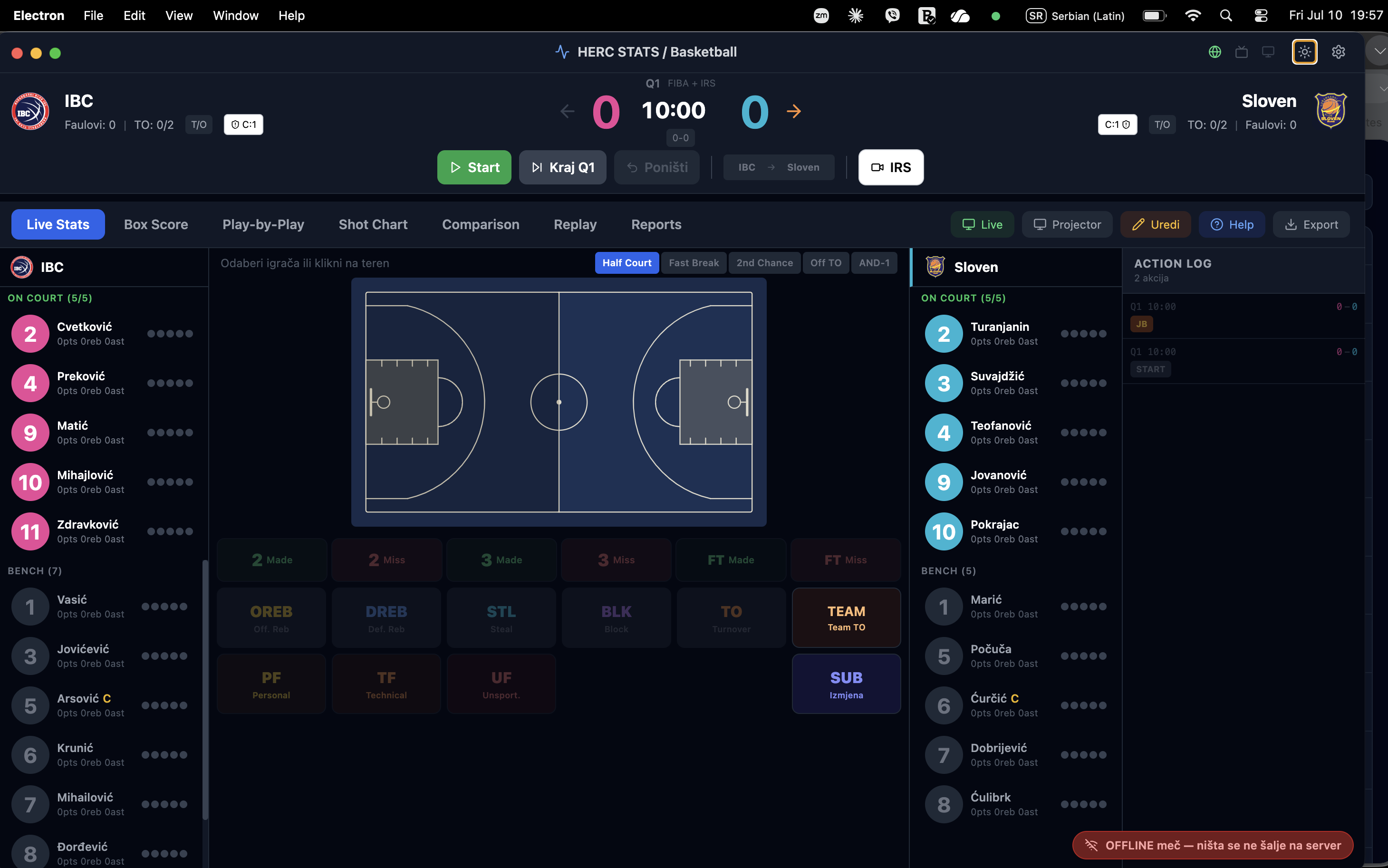

FROM THE PRODUCTCOURTSIDE DESKTOP WORKSPACE
A complete match in one operational view.
The current desktop product combines rosters, score and clock control, shot placement, rapid actions, the event log and synchronization status.
CAPABILITIESWHAT THE SYSTEM DOES
Designed around the work, not the software.
An offline-first desktop workstation for basketball play-by-play, shot charts and reports — with live output measured at 109 ms to the outside world.
A real FIBA rules engine
Fouls and bonus, timeouts per half, substitutions, possession arrow and opening tip, shot-clock context, and an Instant Replay System with coach challenges — encoded as rules, not conventions.
Shot charts and linked events
Fourteen FIBA shot zones mapped from click coordinates, 23 event types, and Synergy-style linked chains: rebound to miss, steal to turnover, free throws to foul, AND-1.
Offline resilience
Every event persists locally, carries a UUID the server dedupes, and drains with exponential backoff when connectivity returns. Deletes survive as tombstones — nothing is lost or duplicated.
One bench, many screens
Projector and scoreboard windows, a LAN /tv page plus txt, xml and json feeds for vMix, OBS and CasparCG, and UDP/TCP output to Bodet and Daktronics scoreboard consoles.
Official outputs
The official KSS/FIBA scoresheet as a one-click A4 PDF, silent printing of box score and shot chart with copy count, and JSON, XML and CSV match export.
WORKFLOWHOW IT OPERATES

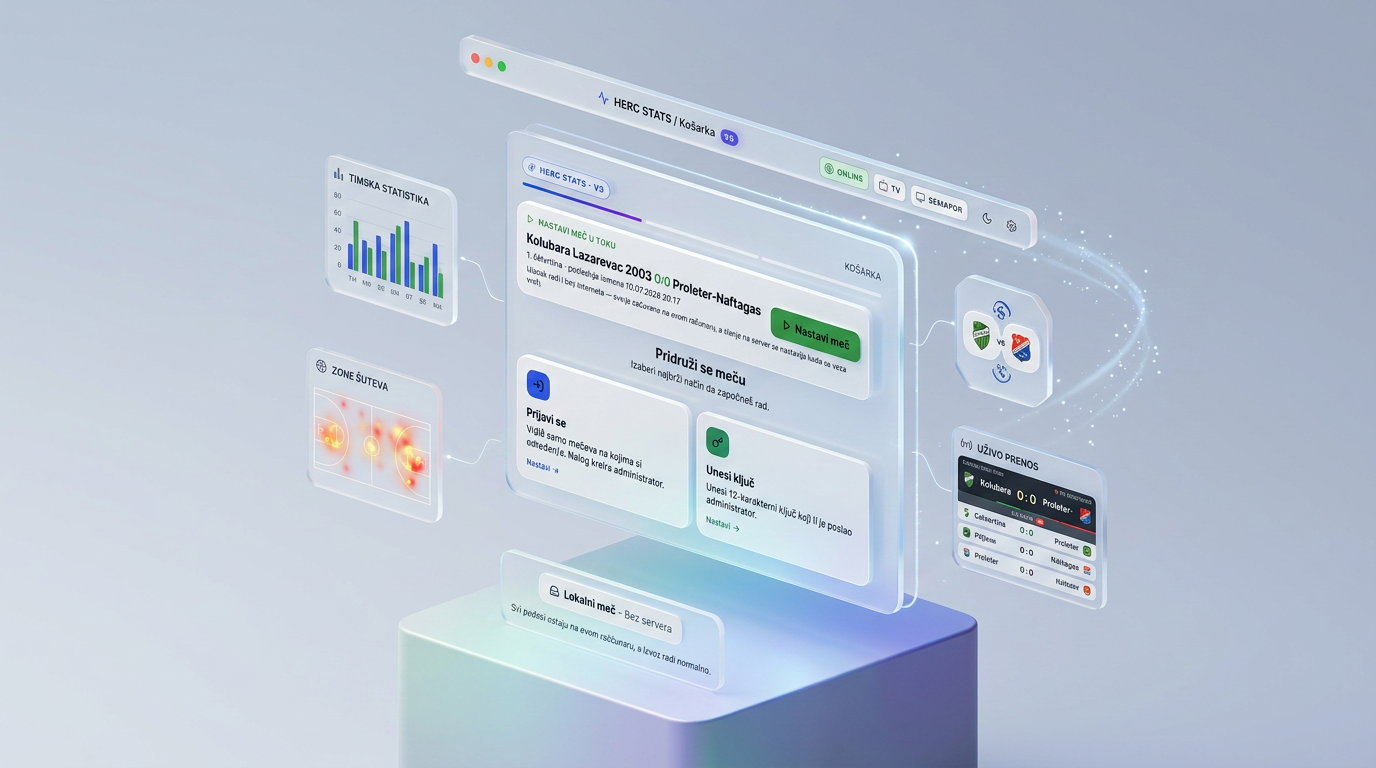

Pair
Enter a one-time match key — no login at the bench. The key binds to the device; takeover is explicit.
Capture
Record scores, shot locations, rebounds, assists, fouls, substitutions and clock context live.
Verify & sync
Review the action log, correct events, print reports and let the verified state reach every consumer.
OPERATIONAL PERFORMANCE
Built for the conditions sport actually creates.
Performance is more than raw speed. It is continuity at the venue, clarity for the operator, trustworthy data and predictable output for every connected audience.
Latency109 ms median
Measured on production from the scorer's click to an external WebSocket consumer (84 ms best).
IntegrityGap-proof
Monotonic sequence numbers let any consumer detect a missed event and self-heal with a delta call.
SecurityDevice-bound
A match key binds to one machine, played matches lock against late writes, and takeover is explicit.
DistributionAPI & webhooks
Scoped partner tokens with plan-based rate limits, plus HMAC-signed webhooks with delivery logs.
MADE FORStatisticiansTable officialsLeague operationsBroadcast teamsData partners
CONNECTED WITHDScore CoreWeb & WidgetsDS ScoutvMix / OBS / CasparCG
